Room Impulse Response Interpolation From A Sparse Set Of Measurements Using A Modal Architecture

PubDate: May 13, 2021

Teams: Facebook Reality Labs

Writers: Orchisama Das, Paul Calamia, Sebastià V. Amengual Garí

PDF: Room Impulse Response Interpolation From A Sparse Set Of Measurements Using A Modal Architecture

Abstract

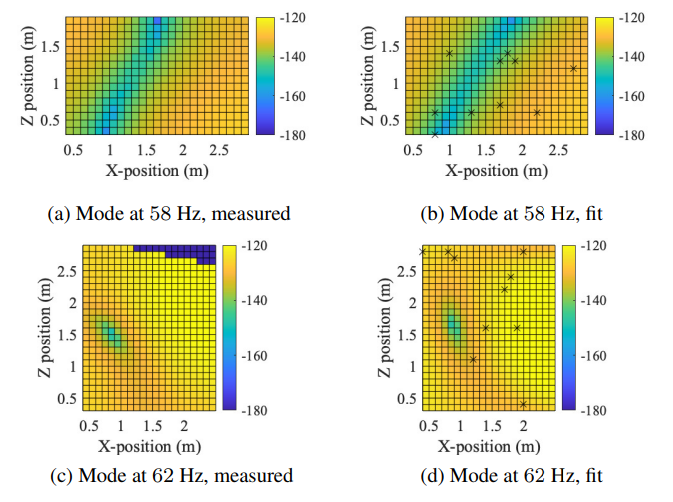

In augmented reality applications, where room geometries and material properties are not readily available, it is desirable to get a representation of the sound field in a room from a limited set of available room impulse response measurements. In this paper, we propose a novel method for 2D interpolation of room modes from a sparse set of RIR measurements that are non-uniformly sampled within a space. We first obtain the mode parameters of a measured room. Using the common-acoustical pole theory, the mode frequencies and decay rates are kept constant over space, and a unique set of mode amplitudes is obtained for each measurement location. Based on the general solution to the Helmholtz equation, these mode amplitudes are modeled as periodic functions of 2D spatial location. For low frequency room modes, the model parameters are found with sequential non-linear least squares. Results show accurate spatial interpolation of perceptually relevant low frequency modes in rooms with simple geometries having non-rigid walls.
