A Switched Planar Multicoil Transmitter Antenna Designed With Nonuniform H-Field Forming for Small Device Localization
PubDate: August 2022
Teams: IIT Ropar
Writers: Ashwani Sharma; Vivek Kumar Srivastava

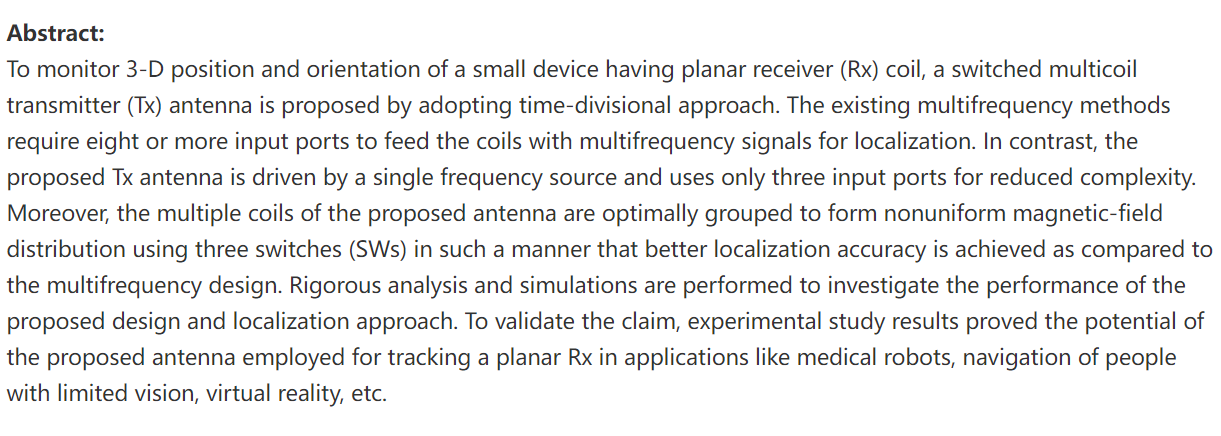

Abstract
