Augmenting Augmented Reality with Non-Line-of-Sight Perception

PubDate: Feb 2023

Teams: 1 Massachusetts Institute of Technology, 2 University of Michigan

Writers: Tara Boroushaki 1, Maisy Lam 1, Laura Dodds 1, Aline Eid 1,2, Fadel Adib 1

PDF: Augmenting Augmented Reality with Non-Line-of-Sight Perception

Abstract

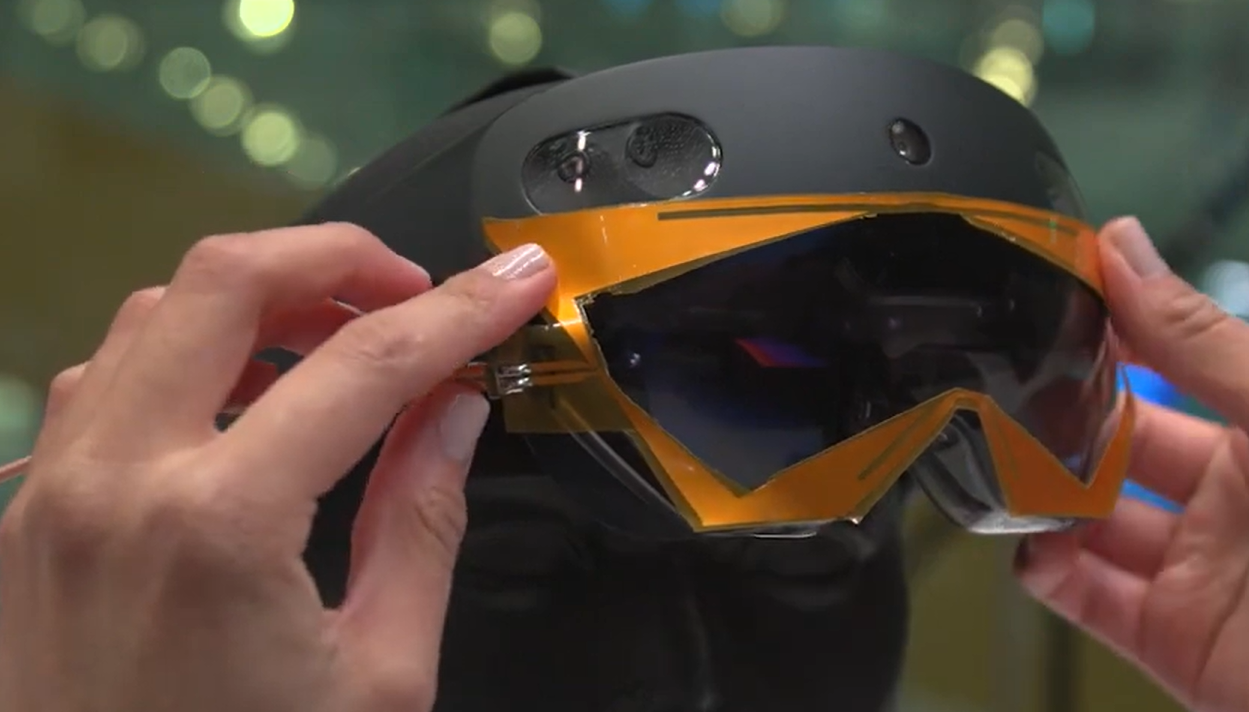

We present the design, implementation, and evaluation of X-AR, an augmented reality (AR) system with non-line-of-sight perception. X-AR augments AR headsets with RF sensing to enable users to see things that are otherwise invisible to the human eye or to stateof-the-art AR systems. Our design introduces three main innovations: the first is an AR-conformal antenna that tightly matches the shape of the AR headset visor while providing excellent radiation and bandwidth capabilities for RF sensing. The second is an RF-visual synthetic aperture localization algorithm that leverages natural human mobility to localize RF-tagged objects in line-ofsight and non-line-of-sight settings. Finally, the third is an RF-visual verification primitive that fuses RF and vision to deliver actionable tasks to end users such as picking verification. We built an end-to-end prototype of our design by integrating it into a Microsoft Hololens 2 AR headset and evaluated it in line-of-sight and nonline-of-sight environments. Our results demonstrate that X-AR achieves decimeter-level RF localization (median of 9.8 cm) of fully-occluded items and can perform RFvisual picking verification with over 95% accuracy (FScore) when extracting RFID-tagged items.These results show that X-AR is successful in extending AR systems to non-line-of-sight perception, with important implications to manufacturing, warehousing, and smart home applications. Demo video: y2u.be/bdUN21ft7G0
