Enabling technologies for audio augmented reality systems

Title: Enabling technologies for audio augmented reality systems

Teams: Microsoft

Writers: H. Gamper Hannes Gamper

Publication date: May 2014

Abstract

Audio augmented reality (AAR) refers to technology that embeds computer-generated auditory content into a user’s real acoustic environment. An AAR system has specific requirements that set it apart from regular human-computer interfaces: an audio playback system to allow the simultaneous perception of real and virtual sounds; motion tracking to enable interactivity and location-awareness; the design and implementation of auditory display to deliver AAR content; and spatial rendering to display spatialised AAR content. This thesis presents a series of studies on enabling technologies to meet these requirements.

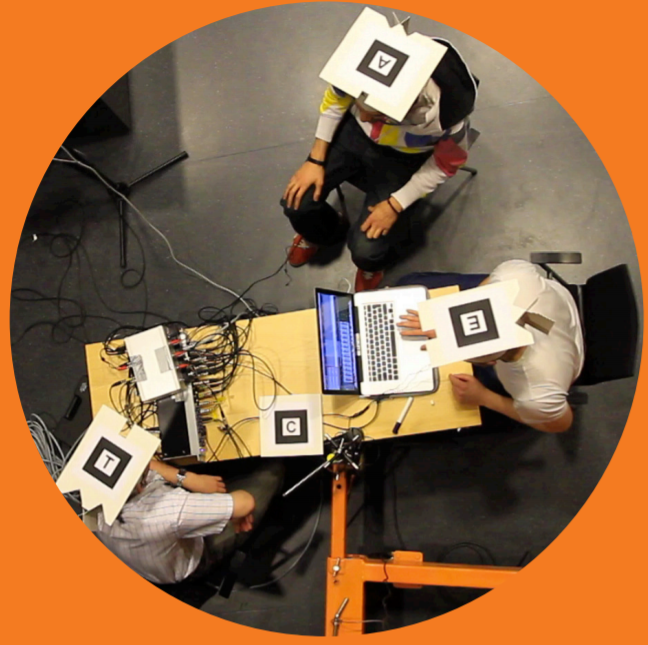

A binaural headset with integrated microphones is assumed as the audio playback system, as it allows mobility and precise control over the ear input signals. Here, user position and orientation tracking methods are proposed that rely on speech signals recorded at the binaural headset microphones. To evaluate the proposed methods, the head orientations and positions of three conferees engaged in a discussion were tracked. The binaural microphones improved tracking performance substantially. The proposed methods are applicable to acoustic tracking with other forms of user-worn microphones.

Results from a listening test investigating the effect of auditory display parameters on user performance are reported. The parameters studied were derived from the design choices to be made when implementing auditory display. The results indicate that users are able to detect a sound sample among distractors and estimate sample numerosity accurately with both speech and non-speech audio, if the samples are presented with adequate temporal separation. Whether or not samples were separated spatially had no effect on user performance. However, with spatially separated samples, users were able to detect a sample among distractors and simultaneously localise it. The results of this study are applicable to a variety of AAR applications that require conveying sample presence or numerosity.

Spatial rendering is commonly implemented by convolving virtual sounds with head-related transfer functions (HRTFs). Here, a framework is proposed that interpolates HRTFs measured at arbitrary directions and distances. The framework employs Delaunay triangulation to group HRTFs into subsets suitable for interpolation and barycentric coordinates as interpolation weights. The proposed interpolation framework allows the realtime rendering of virtual sources in the near-field via HRTFs measured at various distances.
