Variable Curvature Displays: Optical Designs and Applications For VR/AR/MR Headsets

PubDate: Jan 2020

Teams: Aix Marseille Univ

Writers: Eduard Muslimov, Thibault Behaghel, Emmanuel Hugot, Kelly Joaquina, Ilya Guskov

PDF: Variable Curvature Displays: Optical Designs and Applications for VR/AR/MR Headsets

Abstract

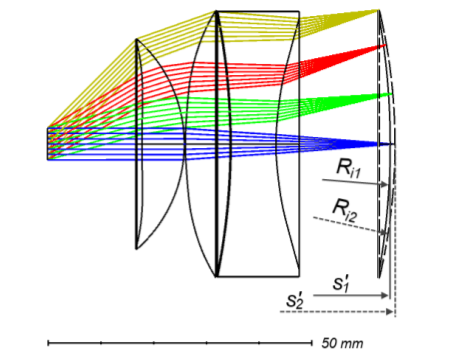

In the present paper, we discuss the design of a projection system with curved display and its enhancement by variably adjusting the curvature. We demonstrate that the focal surface curvature varies significantly with a change of the object position and that it can easily be computed with the Seidel aberration theory. Using this analytically derived curvature value as the starting point, we optimise a refocusable projection system with 90 degrees field of view and F/#=6.2 . It is demonstrated that such a system can provide stable image quality and illumination when refocusing from infinity to 1.5 m. The gain in spatial resolution is as high as 1.54 times with respect to a flat focal surface. Furthermore, we prove that a silicon die can be curved to the required shape with a safety factor of 4.3 in terms of the mechanical stress. Finally, it is shown that the developed system can be used in a virtual reality headset providing high resolution, low distortion and a flexible focusing mode.
