A Compact Full-color Laser Beam Scanning Image Projector Based on a Waveguide-type RGB Combiner

Note: We don't have the ability to review paper

PubDate: Dec 2020

Teams: 1. University of Fukui (Japan), 2. SEIREN KST Corp. (Japan)

Writers: Akira Nakao1, Shoji Yamada1, Toshio Katsuyama1, Osamu Kawasaki2, Kazuki Iwabata2, Koichi Horii2, Akira Himeno1,2

PDF: A Compact Full-color Laser Beam Scanning Image Projector Based on a Waveguide-type RGB Combiner

Abstract

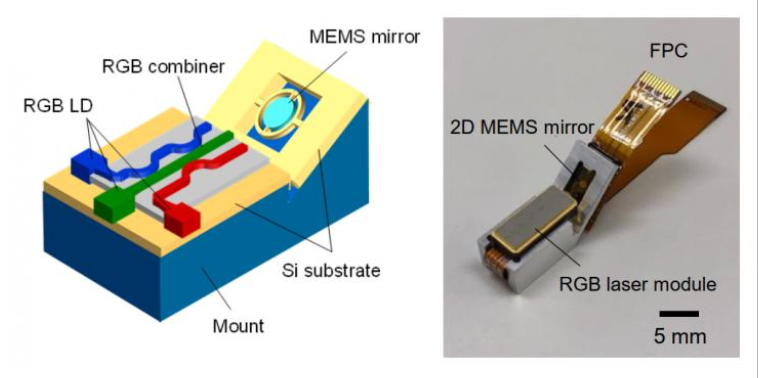

A packaged RGB laser module is demonstrated. Its size reaches as small as 8x4x3 mm. A compact RGB laser scanning module is also demonstrated. Since the modules are based on the waveguide-type combiner, each combined output beam is perfectly aligned. Clear full-color high-definition video images are obtained by using them.
