Design and Fabrication of Freeform Holographic Optical Elements

Note: We don't have the ability to review paper

PubDate: November 16, 2020

Teams: Facebook Reality Labs Research

Writers: Changwon Jang, Olivier Mercier, Kiseung Bang, Gang Li, Yang Zhao, Douglas Lanman

PDF: Design and Fabrication of Freeform Holographic Optical Elements

Abstract

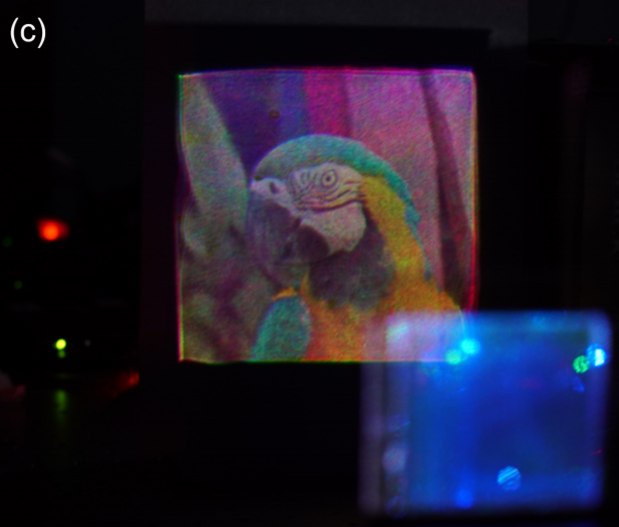

Holographic optical elements (HOEs) have a wide range of applications, including their emerging use in virtual and augmented reality displays, but their design and fabrication have remained largely limited to configurations using simple wavefronts. In this paper, we present a pipeline for the design, optimization, and fabrication of complex, customized HOEs that enhances their imaging performance and enables new applications. In particular, we propose an optimization method for grating vector fields that accounts for the unique selectivity properties of HOEs. We further show how our pipeline can be applied to two distinct HOE fabrication methods. The first uses a pair of freeform refractive elements to manufacture HOEs with high optical quality and precision. The second uses a holographic printer with two wavefront-modulating arms, enabling rapid prototyping. We propose a unified wavefront decomposition framework suitable for both fabrication approaches. To demonstrate the versatility of these methods, we fabricate and characterize a series of specialized HOEs, including an aspheric lens, a head-up display lens, a lens array, and, for the first time, a full-color caustic projection element.
