Closed-Loop Haptic Feedback Control Using a Self-Sensing Soft Pneumatic Actuator Skin

PubDate: Feb 2020

Teams: Reconfigurable Robotics Laboratory，Laboratory for Soft Bioelectronic Interfaces

Writers: Harshal A. Sonar, Aaron P. Gerratt, Stéphanie P. Lacour, and Jamie Paik

PDF: Closed-Loop Haptic Feedback Control Using a Self-Sensing Soft Pneumatic Actuator Skin

Abstract

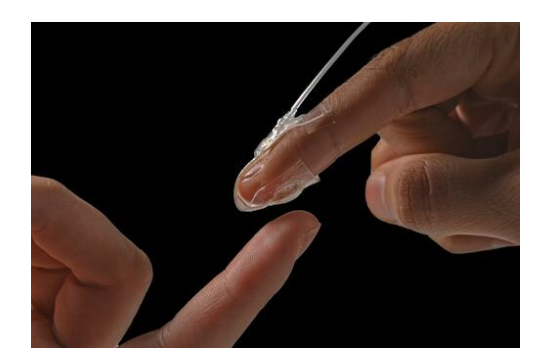

In this article, we achieve a closed-loop control over haptic feedback, first time for an entirely soft platform. We prototyped a novel self-sensing soft pneumatic actuator (SPA) with soft strain sensors, called SPA-skin, which withstands large multiaxial strains and is capable of high-frequency sensing and actuation. To close-loop control the haptic feedback, the platform requires a cohesively integrated system. Our system consists of a stretchable low profile (<500 μm) SPA and an ultra-compliant thin-metal film strain sensor that create a novel bidirectional platform for tactile sensing via force-tunable vibratory feedback. With this prototype, we demonstrated control of the actuator shape in real time up to 100 Hz at output forces up to 1 N, maintained under variable mechanical loadings. We further characterized the SPA-skin platform for its static and dynamic behavior over a range of actuation amplitudes and frequencies as well as developed an analytical model of this system to predict the actuator inflation state only using the embedded sensor’s resistance. Our SPA-skin is a multifunctional multilayer system that can readily be implemented as a high-speed wearable bidirectional interface for contact sensing and vibrotactile feedback.
