A Social Haptic Device to Create Continuous Lateral Motion Using Sequential Normal Indentation

Title: A Social Haptic Device to Create Continuous Lateral Motion Using Sequential Normal Indentation

Teams: Facebook

Writers: Heather Culbertson, Cara M. Nunez, Ali Israr, Frances Lau, Freddy Abnousi, Allison M. Okamura

Publication date: March 25, 2018

Abstract

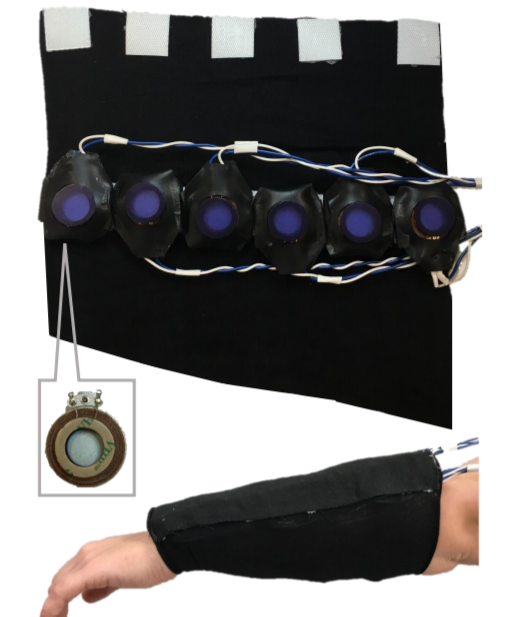

Touch is an essential method for communicating emotions between individuals. Humans use a variety of different gestures to convey these emotions, including squeezes, pats, and strokes. This paper presents a device for creating a continuous lateral motion on the arm to mimic a subset of the gestures used in social touch. The device is composed of a linear array of voice coil actuators that is embedded in a fabric sleeve. The voice coils are controlled to sequentially press into the user’s arm to create the sensation of linear travel up the arm. We evaluate the device in a human-subject study to confirm that a linear lateral motion can be created using only normal force, and to determine the optimal actuation parameters for creating a continuous and pleasant sensation. The results of the study indicated that the voice coils should be controlled with a long duration for each indentation and a short delay between the onset of indentation between adjacent actuators to maximize both continuity and pleasantness.
