Polarization-decoupled Flat Displays

PubDate: Jul 2022

Teams: Information Technology University (ITU) of the Punjab；King Abdullah University of Science and Technology

Writers: Isma Javed, Muhammad Ashar Naveed, Muhammad Qasim Mehmood, Yehia Massoud

PDF: Polarization-decoupled Flat Displays

Abstract

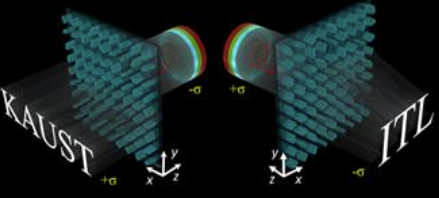

Many modern applications like entertainment displays, data encryption, security, and virtual reality (VR) technology require asymmetric light manipulation. Symmetric spin-orbit interactions (SOI) apply a limit in achieving an asymmetrical metahologram. However, different reported asymmetric SOI’s based on propagation and geometric phase mergence techniques effectively break this limit at the expense of design complexity and greater computation cost. This work proposes a novel helicity multiplexing technique that breaks all the aforementioned barriers in achieving on-axis dual side holograms. Benefiting from the geometric phase modulation of anisotropic nano-resonating antennas, we have employed a single unit cell to achieve helicity multiplexing. A low extinction coefficient material a-Si:H is used for device analysis. Due to the simple single unit cell-based designing technique, simulation and fabrication complexities were significantly reduced. As a result, based on the helicity and incidence direction of electromagnetic wave, we have achieved highly transmissive dual holographic images in the visible band. Our simulated efficiencies are 55%, 75%, and 80% for the blue ({\lambda} = 488 nm), green ({\lambda} = 532 nm), and red light ({\lambda} = 633 nm).
